How Does A Red Dot Sight Work?

Have you ever struggled to align your aim when targeting? For shooters or hunters, a red dot sight is a familiar tool. Known as a game-changer for improving accuracy, how does a red dot sight work? In this post, we will introduce a detailed explanation of everything you need to know about red dot sights, giving you a complete understanding of this tool. Let’s dive in!

Part 1. What is a Red Dot Sight?

Red dot sight is an optical aiming device commonly used on firearms such as shotguns, handguns, and rifles. It helps shooters quickly locate their target with a red dot, making it effective in both daylight and low-light conditions.

Unlike traditional sights that require aligning a front post and rear sight, a red dot sight displays a red dot as the aiming point, allowing shooters to quickly aim at the target. This significantly improves both aiming speed and shooting efficiency.

Red dot sights are ideal for quick target acquisition, dynamic shooting, and precise shooting in low-light conditions, greatly improving a shooter’s reaction time and enabling them to complete shooting tasks more efficiently.

Part 2. Components of Red Dot Sight

The design of a red dot sight is relatively simple, but there are many different implementations across manufacturers. Red dot sights share common components. It mainly consists of several key components:

LED Light Source: The LED light source is the core component that generates the red dot. The LED emits a red light, which is reflected off a mirror to form a red dot as the aiming mark.
Reflector Lens: The reflector lens is a transparent lens with a special coating that reflects red light and displays it in the shooter’s line of sight, creating a clear red dot. The coating only reflects specific wavelengths of red light without affecting the transmission of other wavelengths, ensuring the clarity of the red dot.

Adjustment Knobs: Red dot sights have adjustment knobs to fine-tune the position of the reticle. Common adjustments include windage (left-right) and elevation (up-down), ensuring precise alignment based on the trajectory of the shot.
Brightness Adjustment: The brightness of the red dot can be adjusted, allowing the shooter to adjust its intensity based on ambient light conditions to ensure it remains visible in different lighting environments.
Battery: Red dot sights are powered by batteries to keep the LED light source operational. Battery life affects the overall usage time, so choosing a long-lasting battery is crucial.

Part 3. How Does the Red Dot Sight Work?

After understanding what a red dot sight is and its components, we now turn to the main topic: how do red dot sights work?

In fact, the working principle of a red dot sight is quite simple. It uses an LED light source to emit red light, which is reflected by a reflector lens and displayed in the shooter’s line of sight, creating a red dot. The shooter aligns the red dot with the target to take the shot. This aiming method is very intuitive, and particularly suited for quick reactions and dynamic shooting.

When using a sight, the shooter simply adjusts the brightness knob to adapt to different lighting conditions and uses the adjustment knobs to calibrate the red dot to the firearm’s shooting trajectory. Different types of red dot sights come in various sizes and brightness levels to meet different shooting needs.

Part 4. Types of Red Dot Sight

There are different types of red dot sights, each with its own unique features that suit different shooting preferences and needs. Here are the most common types:

Micro Red Dot Sights

Micro red dot sights are smaller, compact versions of traditional red dot sights, often used for pistols, shotguns, or as secondary optics on rifles.

Features:

Very lightweight and low-profile.
Great for close-range shooting.
Can be mounted on pistols, shotguns, and rifles as a secondary optic.

Reflex Sights

Reflex sights are the most common type of red dot sight. They have a reflective lens that displays the red dot in the shooter’s line of sight. The red dot appears as a result of the reflection of light emitted by an LED inside the sight.

Features:

Generally larger field of view.
No magnification.
Fast target acquisition.
Popular for both short-range and rapid-fire shooting.

Holographic Sights

Holographic sights use a different technology, projecting a holographic image of the reticle onto the lens. Unlike reflex sights, the dot or reticle is a 3D image, not just a reflected light.

Features:

Often more precise than reflex sights.
Some offer additional features such as automatic brightness adjustment.
Better performance in certain lighting conditions.
Typically more expensive and bulkier than reflex sights.

Prism Sights

Prism sights use a prism to focus the reticle. They are similar to red dot sights but often include magnification (e.g., 3x, 5x). These sights combine the benefits of a red dot with a fixed magnification.

Features:

Fixed magnification (usually low power).
More precise for medium-range shooting.
Some models have illuminated reticles.
Compact and rugged.

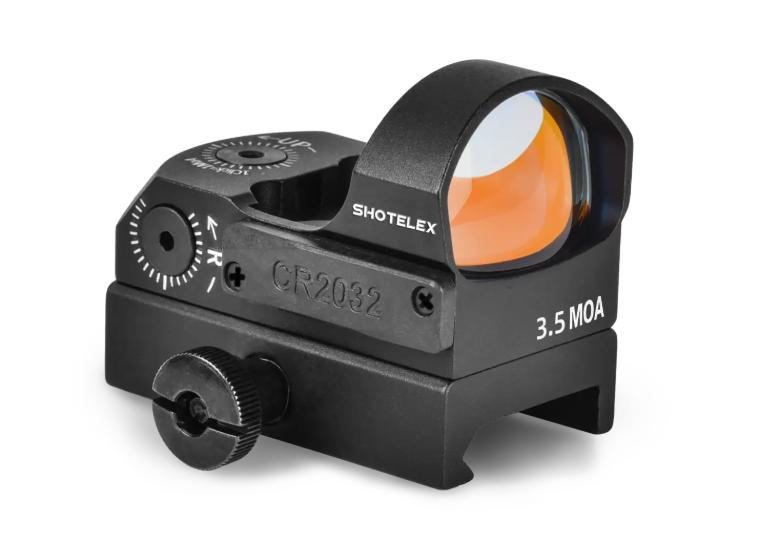

Part 5. Pros & Cons of Red Dot Sight

Red dot sights are a popular choice among shooters due to their ease of use and fast target acquisition. Like any optical device, they come with both advantages and disadvantages. In the following, we’ll introduce the pros and cons to help you decide whether a red dot sight is the right choice for your shooting needs.

Pros of Red Dot Sight

Fast Aiming: Red dot sights provide a clear red dot, allowing the shooter to quickly align the dot with the target. This simplifies the process of aligning front and rear sights, making aiming faster and more intuitive.
Improved Shooting Accuracy: The red dot is clearly visible, helping the shooter aim more accurately, especially in dynamic shooting or unstable environments. Red dot sights enhance shooting accuracy.
Adaptability to Different Environments: The brightness of red dot sights can be adjusted to suit various lighting conditions, from bright sunlight to dim environments, ensuring clear views in all conditions.
No Need for Perfect Eye Alignment: With a red dot sight, the shooter does not need to align their eye perfectly with the sight, increasing shooting flexibility and reaction speed.

Cons of Red Dot Sight

Battery Dependency: Red dot sights rely on batteries, and battery life directly affects the operational time of the sight. A depleted battery can cause usage to be disrupted.
Limited Long-Range Accuracy: While red dot sights are ideal for close to medium-range shooting, they may not provide the same level of precision for long-range shooting as traditional scopes.
Limited Field of View: While red dot sights provide a wider field of view than some scopes, their field of view is still limited compared to high-end scopes, which may offer better peripheral vision.

Part 6. How to Use Red Dot Sights?

Using a red dot sight is quite simple. First, ensure the sight is properly mounted on the firearm and turn on the power. Then, adjust the brightness of the red dot to match the lighting conditions to ensure it remains visible.

To quickly aim, the shooter simply needs to align the red dot with the target, without the need to align the front post and rear sight like traditional sights. The red dot helps the shooter quickly acquire the target, making it particularly effective in dynamic shooting situations.

Once the red dot is positioned, the shooter can fine-tune the aiming point using the windage and elevation adjustment knobs to align with the firearm’s trajectory. During shooting, there is no need to perfectly align the eye with the sight, as the red dot sight allows for a more flexible line of sight, increasing reaction speed. For close-range or medium-range shooting, a red dot sight provides a fast and accurate aiming experience.

Part 7. How to Choose the Right Red Dot Sights?

Purpose of Use

First, determine the primary purpose of your red dot sight. If you mainly engage in fast shooting or dynamic shooting, a reflex red dot sight may be more suitable because it provides a wider field of view for quick target acquisition. For higher precision, you may want to choose a sight with a smaller dot or adjustable brightness.

Dot Size

The size of the red dot affects aiming accuracy. A larger red dot is ideal for close-range fast targeting, while a smaller dot is better for precision shooting. Choose the appropriate dot size based on the shooting distance and purpose.

Typically, 2MOA (minute of angle) or 3MOA dots are ideal for precision shots, while 6MOA or larger dots are better for quick target acquisition.

Adjustment Mechanisms

Red dot sights feature windage and elevation adjustments. Ensure these knobs are easy to operate and accurate. Additionally, the brightness adjustment is crucial—opt for a sight that offers multiple brightness settings to accommodate various lighting conditions.

Battery Life

Red dot sights are powered by batteries, so choosing a sight with a long battery life is important to avoid frequent battery replacements. Energy-efficient designs, such as models with automatic brightness adjustment, can help extend battery life.

Durability and Waterproofing

Red dot sights need to withstand recoil and harsh environments, so it’s important to select one that is waterproof, dustproof, and shock-resistant. Durability is especially important when using the sight outdoors or in adverse weather conditions.

Price and Brand

Choose a brand and model that fits within your budget. Premium brands typically offer better optical performance and durability, while mid-range brands may provide better value for money. Balance the price and performance based on your specific needs.

Final Thoughts: Shotelex Red Dot Sights – Your Reliable Choice

Whether you’re looking to improve shooting accuracy or gain better aiming capabilities in complex environments, red dot sights can significantly enhance your shooting experience. If you’re looking for a high-quality red dot sight, Shotelex, as a professional red dot sight supplier, offers exceptional accuracy, durability, and ease of use, making it a reliable choice for shooters who prioritize both quality and performance.
