hunter scope Adroit 3-9X40
Duplex Reticle

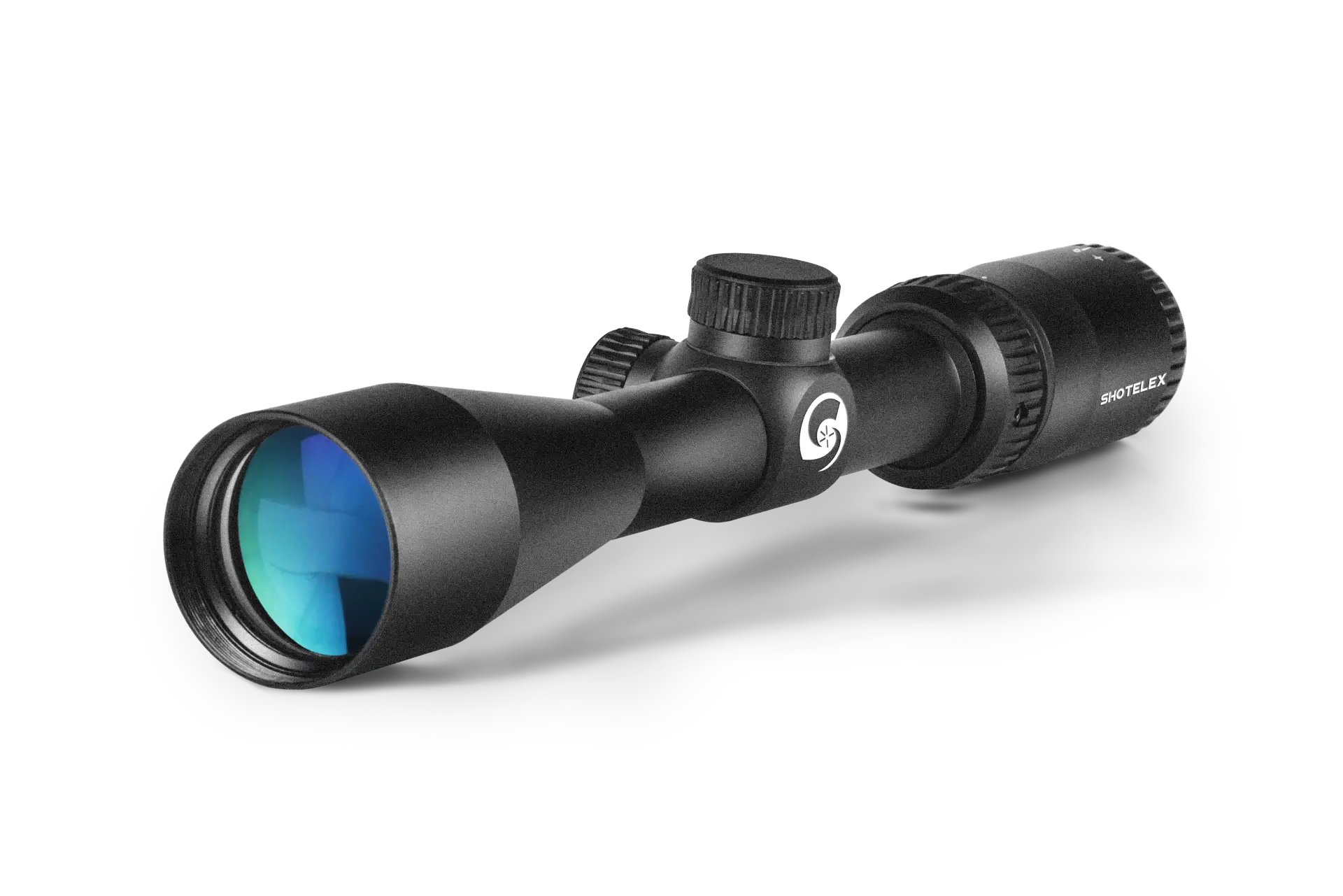

Introduction of Hunter Scope Adroit 3-9X40
The Adroit 3-9×40 hunter scope, with its low-profile turrets design, Shotelex S2 optical system, and 12-layer optical coating technology, as well as the precise aiming assistance of the DUPLEX reticle, not only showcases a minimalist yet powerful aesthetic in appearance but also reflects a deep insight and satisfaction of user needs in functionality.
Advantage of Hunter Scope Adroit Adroit 3-9X40
The core advantage of the hunting scope Adroit Adroit 3-9X40 is its Shotelex S2 optical system.
- This S2 optical system utilizes 12 layers of optical coating technology.
- Each layer is carefully calculated and optimized to ensure efficient light transmission.
- Even in poor lighting conditions, such as dawn or dusk, it provides a clear and detailed field of view.
- This optical system allows hunters to accurately identify targets and make precise judgments.
- The Shotelex S2 optical system not only improves light transmittance but also effectively reduces reflection and dispersion.
- The DUPLEX reticle combines the central crosshair with surrounding auxiliary lines to provide precise aiming assistance, suitable for users of different levels.
- It ensures natural color reproduction and clear presentation of details, helping hunters maintain keen observation in complex natural environments.
Feature
Duplex
The Hunter Scope Adroit 3-9X40 boasts a distinctive crosshair design, where four thick crosshair edges converge at the center to form a small cross. This design offers a clear and symmetrical aiming point, ensuring precise target positioning for the shooter.
SPECIFICATIONS
CODE | 14113 |
MAGNIFICATION | 3-9X |
TUBE DIAMETER | 25.4mm |
RETICLE | Duplex |
EYE RELIEF(mm) | 96 |
CLICK VALUE@100yds | 1/4 MOA |
ELEVATION RANGE | 60MOA |
WATERPROOF | IPX5 |
WEIGHT(g) | 420 |
MODEL | ADROIT 3-9X40 |
OBJECTIVE DIAMETER | 40mm |
FOCAL PLANE | Second |
FIELD OF VIEW(FT@100yd) | 42.4 – 12.1 |
EXIT PUPIL(mm) | 12 – 4.4 |
ELEVATION LOCKING | Yes |
WINDAGE RANGE | 60MOA |
ILLUMINATION | N/A |
LENGTH(mm) | 310 |
Product Compare
ADROIT | ||||
CODE | 14110 | 14112 | 14113 | 14115 |
MAGNIFICATION | 1.5-5X | 2-7X | 3-9X | 4-12X |
OBJECTIVE DIAMETER | 20mm | 32mm | 40mm | 40mm |
TUBE DIAMETER | 25.4mm | 25.4mm | 25.4mm | 25.4mm |
FOCAL PLANE | Second | Second | Second | Second |
RETICLE | Duplex | Duplex | Duplex | Duplex |
FIELD OF VIEW(FT@100yd) | 84.9-25.5 | 63.7 – 18.2 | 42.4 – 12.1 | 31.8 – 10.6 |
EYE RELIEF(mm) | 96 | 96 | 96 | 96 |
EXIT PUPIL(mm) | 11.87-4 | 14.24 – 4.57 | 12 – 4.4 | 9 – 3.3 |
CLICK VALUE@100yds | 1/2 MOA | 1/4 MOA | 1/4 MOA | 1/4 MOA |
ELEVATION RANGE | 60MOA | 60MOA | 60MOA | 60MOA |
WINDAGE RANGE | 60MOA | 60MOA | 60MOA | 60MOA |
WATERPROOF | IPX5 | IPX5 | IPX5 | IPX5 |
ILLUMINATION | N/A | N/A | N/A | N/A |
WEIGHT(g) | 300 | 320 | 420 | 440 |
LENGTH(mm) | 235 | 235 | 310 | 339 |
